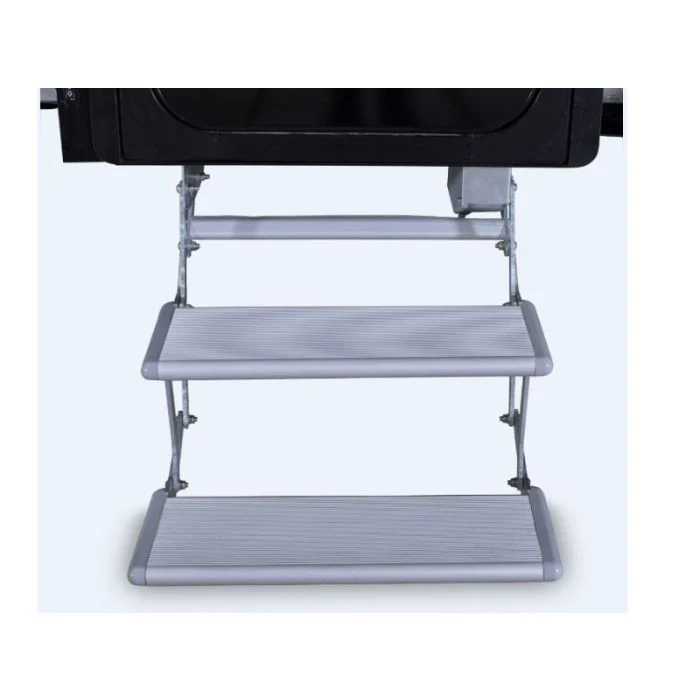

The Camec electric step is a fantastic addition to your caravan or motorhome. These steps have an aluminium tread and the frame is constructed from galvanised steel. They have a 12V motor that extends and stores the step which is operated by a switch that is placed just inside the doorway. The mounting bracket can be bolted or welded to the chassis and are 554mm from outside to outside.
FEATURES
- 560mm wide electric step
- Operated by a switch
- Dimensions of step tread: 560mm x 210mm
- Weight: 5.6kg
- Clearance required: 170mm deep when closed
- Closed step is 50mm proud of mounting flange and open step is 300mm proud of mounting flange
- Open step tread is 190mm below mounting flange
- Motor is lcoated on the right side
